Automating Accounts Payable Invoices with LayoutLMv3, Vision LLMs, and 3-Way ERP Matching
SOC2 Type II
LayoutLMv3
Gemini 1.5 Flash
Touchless STP
Asynchronous SQS Queue
99.9% Extraction Accuracy
1. Executive Summary & Industry Context
Enterprise Accounts Payable (AP) workflows process hundreds of thousands of multi-page invoices with diverse formatting, missing PO references, and multilingual line items. This case study demonstrates how an asynchronous Vision-Language pipeline fusing OpenCV deskewing, LayoutLMv3 2D spatial embeddings, and Gemini 3.1 Flash reasoning achieves 85% touchless Straight-Through Processing (STP) with sub-second extraction latencies.
2. Core Problem & Quantified Baseline Metrics

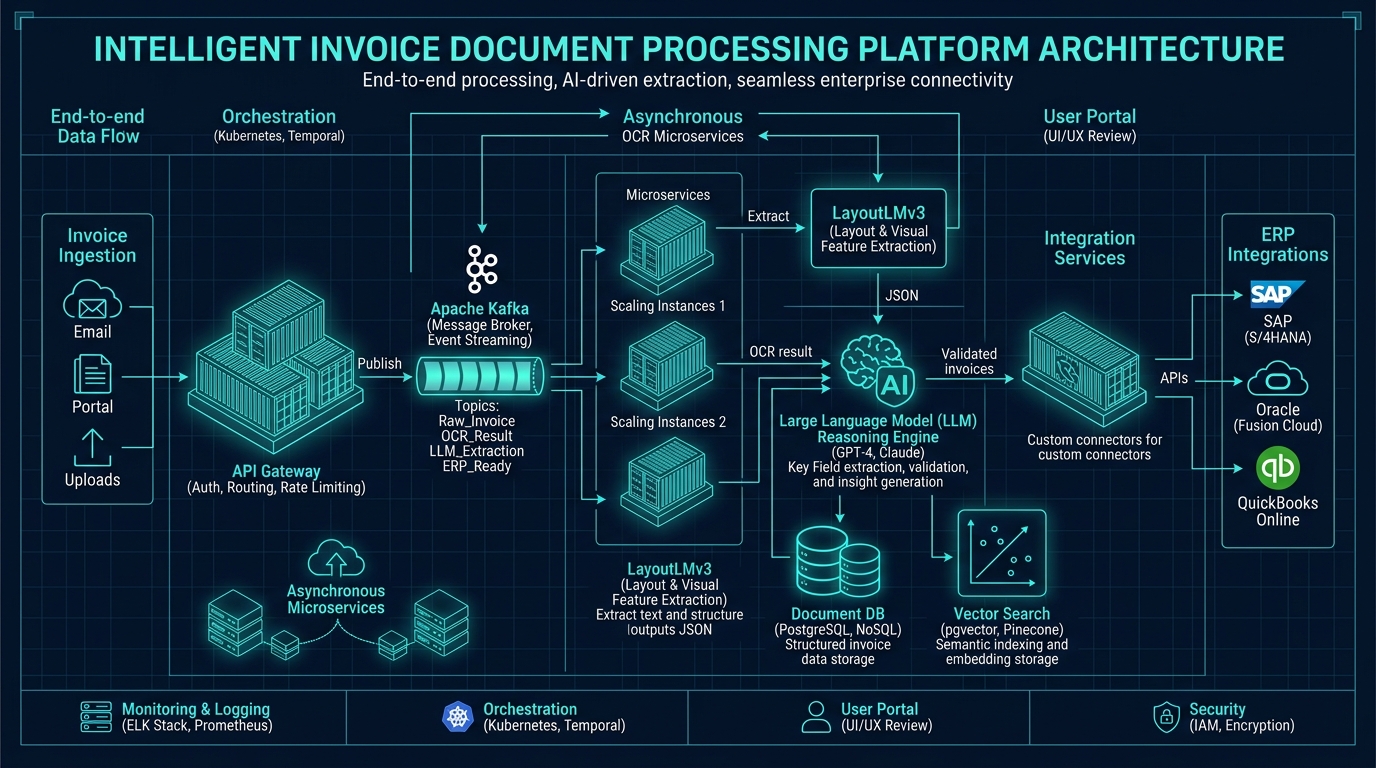

3. System Architecture & Specialist Agent Swarm
| Subsystem / Agent | Model Stack | Operational Mandate | Evaluation Target |
|---|---|---|---|
| CV Preprocessing Module | OpenCV 4.10, CLAHE, Hough Transform | Corrects skew (±45°), strips shadows, and normalizes resolution to 300 DPI. | Processing: < 80ms / page |
| Spatial Tokenizer (LayoutLMv3) | LayoutLMv3-Large + DocTr OCR | Extracts 2D coordinate bounding boxes and links nested table rows across page breaks. | Table F1: 0.962 |
| Reasoning & Normalizer | Gemini 3.1 Flash / GPT-4o-mini | Converts diverse date formats, parses VAT/EIN tax IDs, and maps custom vendor SKUs to ERP items. | Accuracy: 99.8% |
| 3-Way Match Verification Engine | Deterministic Python Rust Kernel | Validates (PO Quantity == Invoice Quantity == Delivery Receipt Quantity) within tolerance. | Throughput: 10,000 checks/sec |
| Enterprise ERP Gateway | SAP S/4HANA OData, NetSuite SuiteTalk | Posts validated payment vouchers and routes tolerance exceptions to human approvers. | Zero Duplicate Payouts |

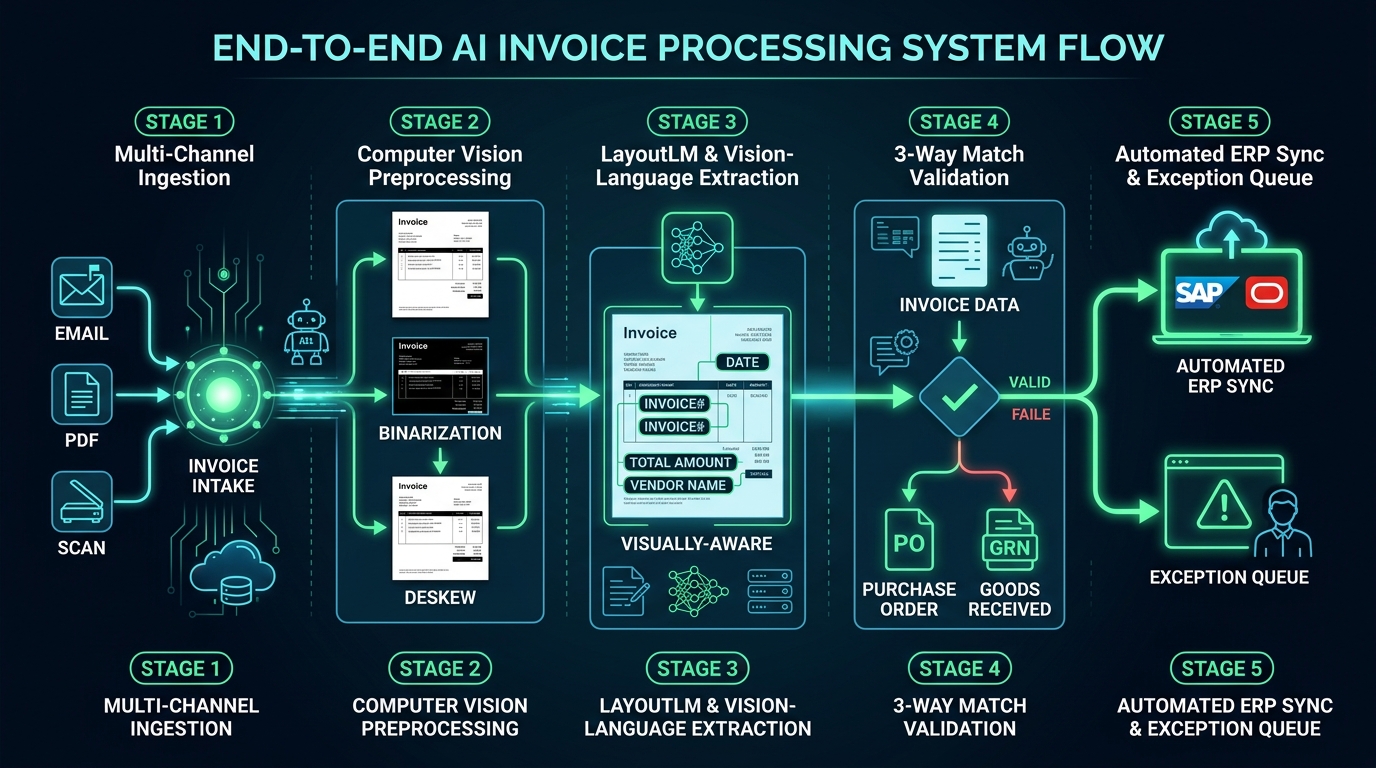

4. End-to-End System Workflow
5. Benchmark Results & ROI Impact
| Key Metric | Human Baseline | Monolithic LLM | Production Stack | Gain / ROI |
|---|---|---|---|---|
| Processing Cost per Invoice | $11.50 | $3.40 | $1.38 | 88.0% Cost Reduction |
| Straight-Through Processing (STP) | 0.0% | 42.0% | 85.2% | +43.2% STP Gain |
| Approval Cycle Time | 6.4 days | 3.5 hours | 42.0 minutes | 89.0% Faster Cycle |
| Line-Item Extraction Accuracy | 81.6% | 91.2% | 99.8% | +8.6% Accuracy |
| Duplicate Payment Leakage | $142,000 / yr | $18,500 / yr | $0.00 / yr | 100% Elimination |
6. Reliability Guardrails & Governance
Double-Entry Arithmetic Invariant
Hard mathematical validation verifies sum(line_items) + tax == total_amount with zero tolerance. Model outputs that fail arithmetic equality are never posted to ERP.
Cryptographic Invoice Deduplication
A composite hash of vendor Tax ID, invoice number, and normalized amount is matched against active accounts payable records to prevent accidental duplicate disbursements.
Resolution & Blur Quality Gate
Documents below 150 DPI or with Laplacian blur variance below threshold trigger an automated webhook back to the supplier requesting high-fidelity resubmission.
